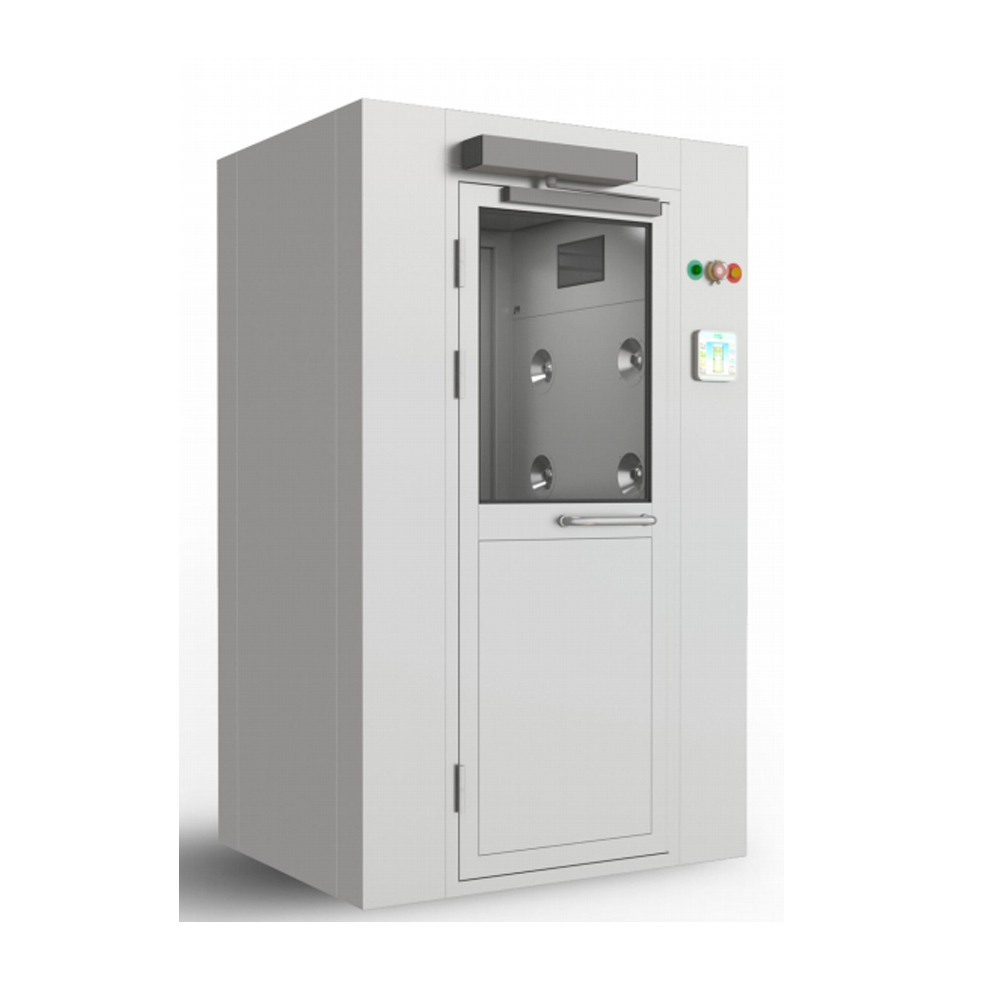

| product name | AIR SHOWER | ||||||||
| product discription | The air shower is a necessary passage for people to enter the clean room,which can reduce the pollution caused bypeople entering and leaving the clean room. lt is a kind of local purification equipment with strong versatility, whichis installed between the clean room and the non-clean room. When personnel want to enter the clean area, theyneed to be showered through the air shower. The clean air blown out can remove the dust carried by thepersonnel, and can effectively block and reduce the dust source from entering the clean area. At the same time.the front and rear doors are electronically interlocked,which can also act as an airlock to control the outsidepolluted air entering the clean area.This equipment is widely used in biological laboratories，pharmaceuticalfactories, hospitals, food processing, electronics factories, painting and other air purification places.The high-tech air shower if of voice reminding function. | ||||||||
| material | Powder coated steel, Polish SUS 201/304/316; Mirror SUS 201/304/316 | ||||||||
| voltage | 220V/380V, frequency 50Hz/60Hz single-phase / three-phase | ||||||||
| blowing type | single blow,top blow,double blow, three blow | ||||||||
| person QTY | single person, double person,multiple people | ||||||||
| usage requirement | manual door, automatic door, S type,L type,three-doors air shower, bufferroom,etc | ||||||||
| door type | manual doors, automatic 90 degree doors,sliding doors. fast rolling shutter doors. curtaindoors, no doors,etc | ||||||||
| shower time | 1-99 seconds | ||||||||
| HEPA efficiency | 99.95%@0.3um | ||||||||
| technical data | |||||||||
| model | suitable person | external size | internal size | nozzle QTY | air speed | noise | weight | power | lamp power |
| pcs | W*D*H | W*D*H | pcs | m/s | dB（A） | KG | W | W | |
| FLS-01 | 1—2 | 1290*1000*2130 | 790*880*1925 | 12 | 22—27 | <65 | 150 | 1100 | 15 |
| FLS-02 | 2—3 | 1290*1500*2130 | 790*1380*1925 | 18 | 200 | 1500 | 15 | ||
| FLS-03 | 3—4 | 1290*2000*2130 | 790*1880*1925 | 24 | 260 | 2200 | 30 | ||
| FLS-04 | 4—5 | 1290*3000*2130 | 790*2880*1925 | 36 | 390 | 3300 | 45 | ||
