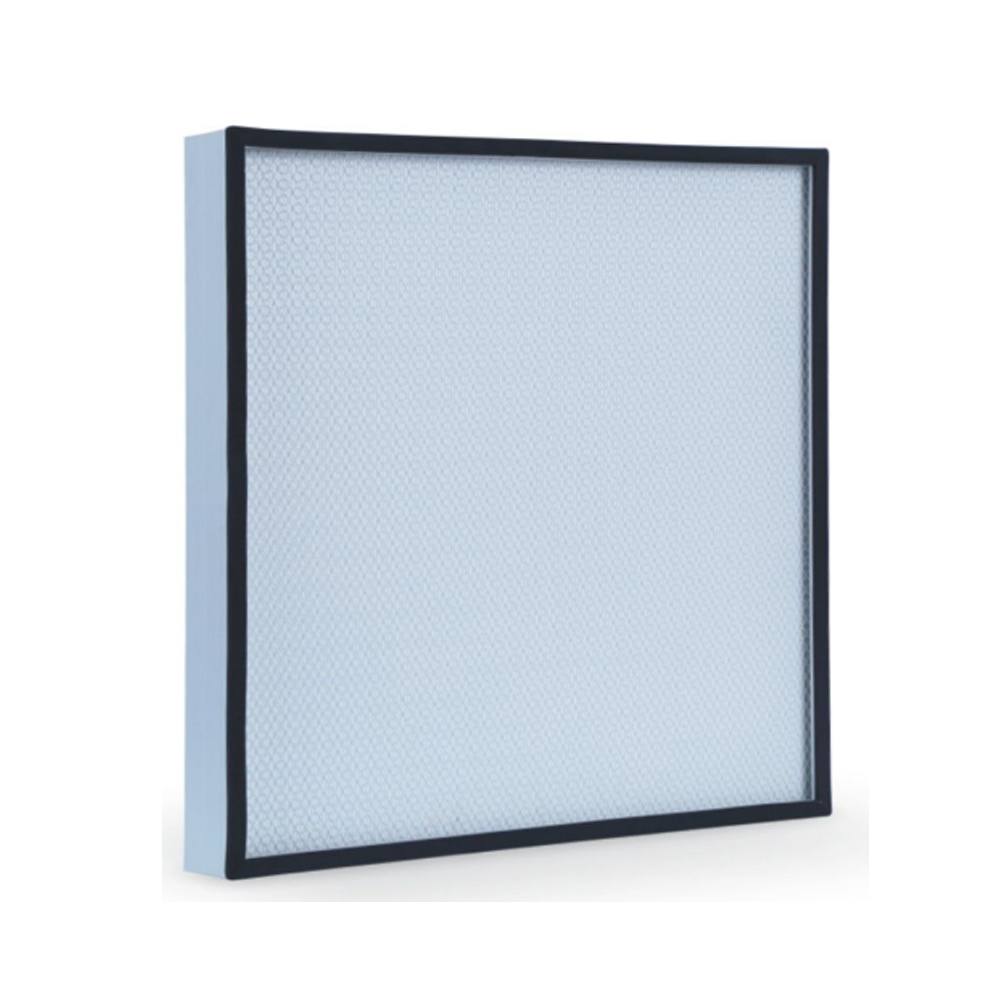

| product name | No partition high-efficiency filter Pleated HEPA Filter | |||||
| 产品概述 (product description) | Deep pleated HEPA filter is mainly used to collect 0.3-0.5um paticles and various suspend solids. The high efficiency filter is an ideal terminal filter for various filtering system.It adopt superfine fiberglass or Ultra fine polypropylene as filtering media,hot melt adhesive as separator,it use new Polyurethane Sealant as sealing material,equiped with gavanlized sheet,stainless steel sheet,aluminium alloy profile as outer frame. | |||||
| thickness | 50mm,69mm,80mm,96mm,120mm,or custom-made | |||||
| 应用场合 (applicable field) | Every filter is tested by method of sodium flameIt,with feature of high filtering efficiency,low pressure,large dust-holding volume.The filter is widely used for air conditioning terminal ventilation system of dust-free plant in Optical Electronics,LCD manufacturing, biomedicine,precise instrument,food and beverage,PCB industry.High efficiency and super high-efficiency filters are used in terminal of cleanroom.The filter in terms of structure include:pleat HEPA filter,non-pleat HEPA filter,large air volume HEPA filter and super HEPA filter. | |||||
| product feature | high efficiency,low resistance,easy installation,low weight,low use cost | |||||
| technical data | ||||||
| model | size | rated air volume | air speed | initial pressure | final pressure | efficiency |
| W*H*D | m3/h | m/s | Pa | Pa | % | |
| LAD-WHP-320 | 320*320*69 | 300 | 0.35 | ≤170 | 400 | H10∽H14 |
| LAD-WHP-484 | 484*484*69 | 500 | ||||
| LAD-WHP-610 | 610*610*69 | 700 | ||||
| LAD-WHP-630 | 630*630*69 | 1000 | 0.45 | |||
| LAD-WHP-915 | 915*610*69 | 1500 | ||||
| LAD-WHP-1220 | 1220*610*69 | 2000 | ||||
| LAD-WHP-320B | 320*320*96 | 500 | 0.6 | |||
| LAD-WHP-484B | 484*484*96 | 1000 | ||||
| LAD-WHP-610B | 610*610*96 | 1200 | ||||
| LAD-WHP-630B | 630*630*96 | 1500 | ||||
| LAD-WHP-915B | 915*610*96 | 2000 | ||||
| LAD-WHP-1220B | 1220*610*96 | 3000 | ||||
