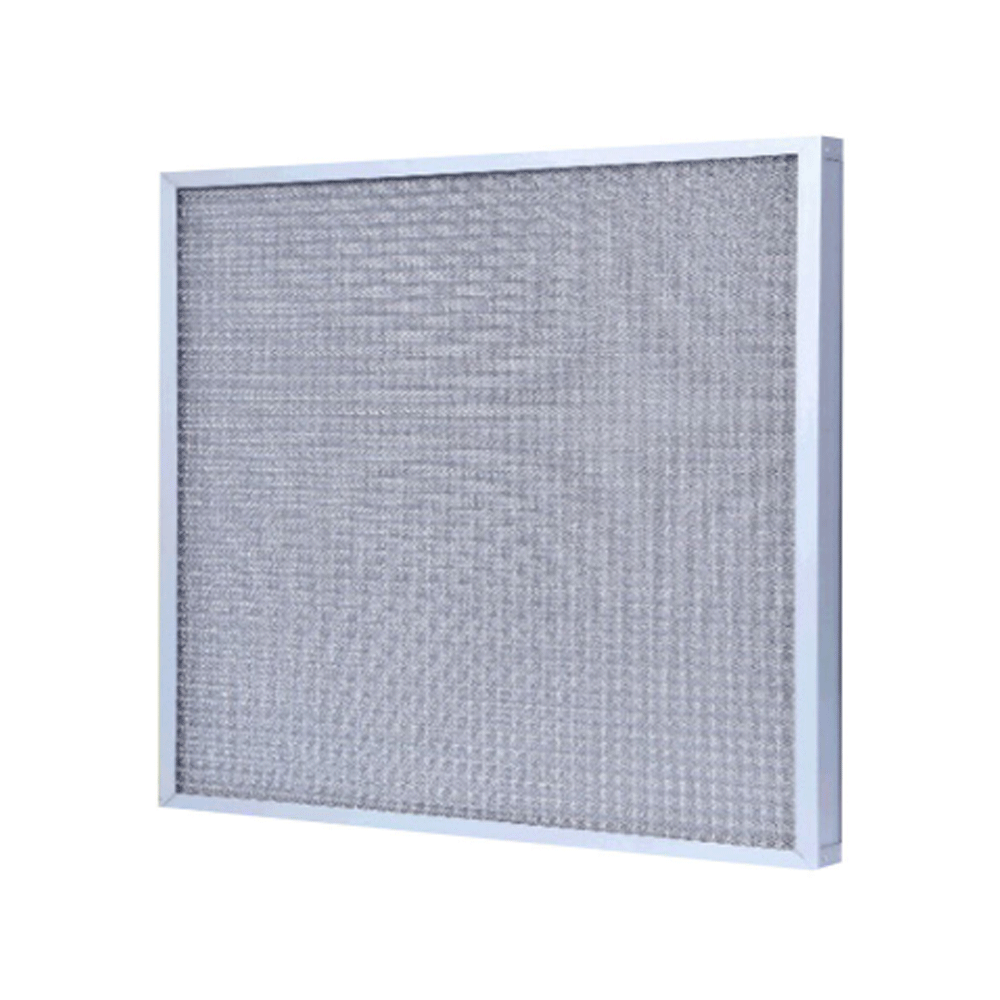

| product name | Metal Mesh Filter | |||||
| product discription | Plate pre-filter is initial filter for air-conditioning system,mainly to filt more than 5um paticles.Outer frame: aluminium frame,gavalized sheet frame,stainless steel frame,filter material:wave aluminium mesh,stainless steel wave mesh | |||||
| thickness | 21mm,46mm,69mm or custom-made | |||||
| applicable field | Pre-filtering for air conditioning and ventilation system,avoid dust gathering in system.Pre-filtering for large air compressor,pre-filtering for cleanroom ventilation system and return-wind system to extend HEPA filter use life.Used in ventilation for normal industry workshop to meet usual clean requirement.Pre-filtering for air conditioning system in normal building. | |||||
product feature | large air volume,low resistance,long use life,washable | |||||
| washable time | ≥3 times | |||||
| technical data | ||||||
| size | air volume | initial presure(PA) | final presure | efficiency | ||
| W*H*D | m3/h | 70% | 100% | 120% | Pa | 计重法(Weighting method) |
| 595*595*21 | 3200 | 10 | 15 | 25 | 250 | G2—70% |
| 595*495*21 | 2700 | |||||
| 595*295*21 | 1600 | |||||
| 495*495*21 | 2200 | |||||
| 295*295*21 | 800 | |||||
| 其它定制尺寸(other custom-made size) | / | |||||
| / | / | |||||
