Specification:

Model number	LAD/KJDZ
FP modle	FP-51	FP-68	FP-85	FP-102	FP-136	FP-170	FP-204	FP-238
Dimension mm(A*B*C)	650*200*120	750*200*120	850*200*120	960*200*120	1200*200*120	1400*200*120	1550*200*120	1650*200*120
Process air volume(m3/h)	510	680	850	1020	1360	1700	2040	2380
Dimension	Customized according to actual needs			Lifespan	10-15years
PM2.5 purified rate(%)	≥98			Formaldehyde purification rate(%)	≥99.98
Sterilizing rate(%)	≥99.96			Ozone	≤0.004
Wind drag(pa)	8-10pq			Power(W)	≤10
Control mode	linkage operation with air conditioner, air switch			Installation method	Hoisting(ø)
Working status	Operation instructions, fault instructions, cleaning tips			Louver type	Door hinge, with panel touch switch
Lifespan	10-15years			Dimension	Customized according to actual needs
Features	Overload protection, constant current and voltage, arc protection, short circuit protection, over temperature protection, shell grounding protection
Can choose to match	Unipolar electric field, bipolar electric field, micro electrostatic field, graphene electric field, cold catalyst net, activated carbon net, lysozyme filter net, formaldehyde and ozone removal purification net



Product description:

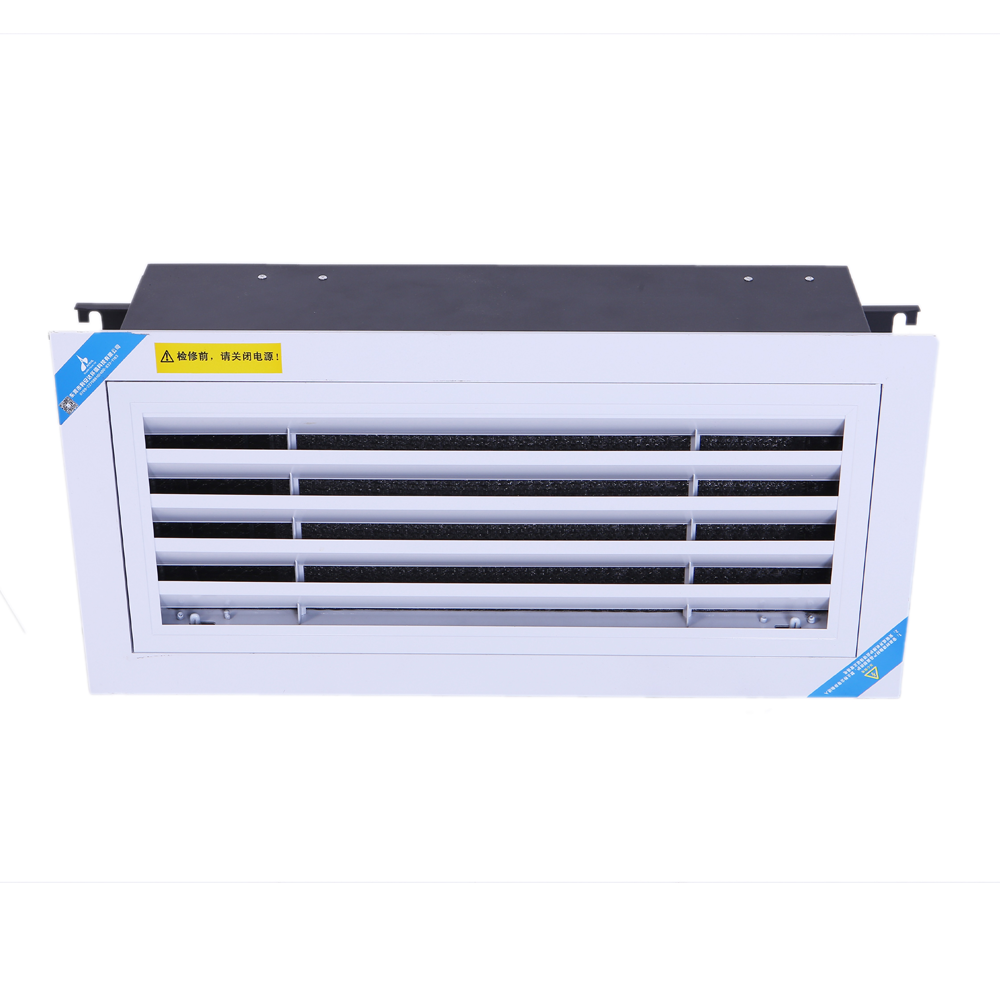

This product is also called a fan-coil electronic air purifier and sterilizer, which mainly solves the air quality problem in a single room by means of the coil circulating air.

Indoor air enters from the return air outlet under the action of the fan. Under the action of the front primary filter, high-voltage electric field, and rear lysozyme filter, it can effectively purify PM2.5, remove formaldehyde, toluene, etc., and kill bacteria And viruses to improve indoor air quality.

Structure: Primary effect aluminum mesh, high voltage electric field, bacteriolytic filter

Function:

*Efficiently remove PM2.5 and particulate matter

*Effectively kill bacteria, viruses, etc. physically

*Electrostatic precipitator

*Purify formaldehyde, TVOC and other decoration pollution

*Quickly remove indoor pollutants such as smoke



Features:

*Exclusive patent technology, patent number: 201621403644.6

*Low power consumption and low wind resistance;

*Perfectly match with air-conditioning vents and fan coils, no additional installation space is required

*The aluminum alloy shutters can be taken out directly from below for easy cleaning and maintenance.

*The product is equipped with a pneumatic switch, which is used in conjunction with air conditioning,

*The electric control system has safety protection measures such as overload protection, arc protection, power failure protection, etc.
