Specification:

Model number	LAD/KJUV-40-4GC	LAD/KJUV-40-8GC
Dimensions(mm)	250*164*344	440*164*344
Opening(mm)	Φ110x1	Φ110x2
Process air volume(m³/h)	8000	16000
Power(w)	80	160
Sterilizing rate(%)	99.96
Wind drag(pa)	≤5
Ozone(mg/m³)	0.003
Light durability(h)	9000-12000
Material	metal
Installation	wind tunnel insert
Control	operation link to air conditioner

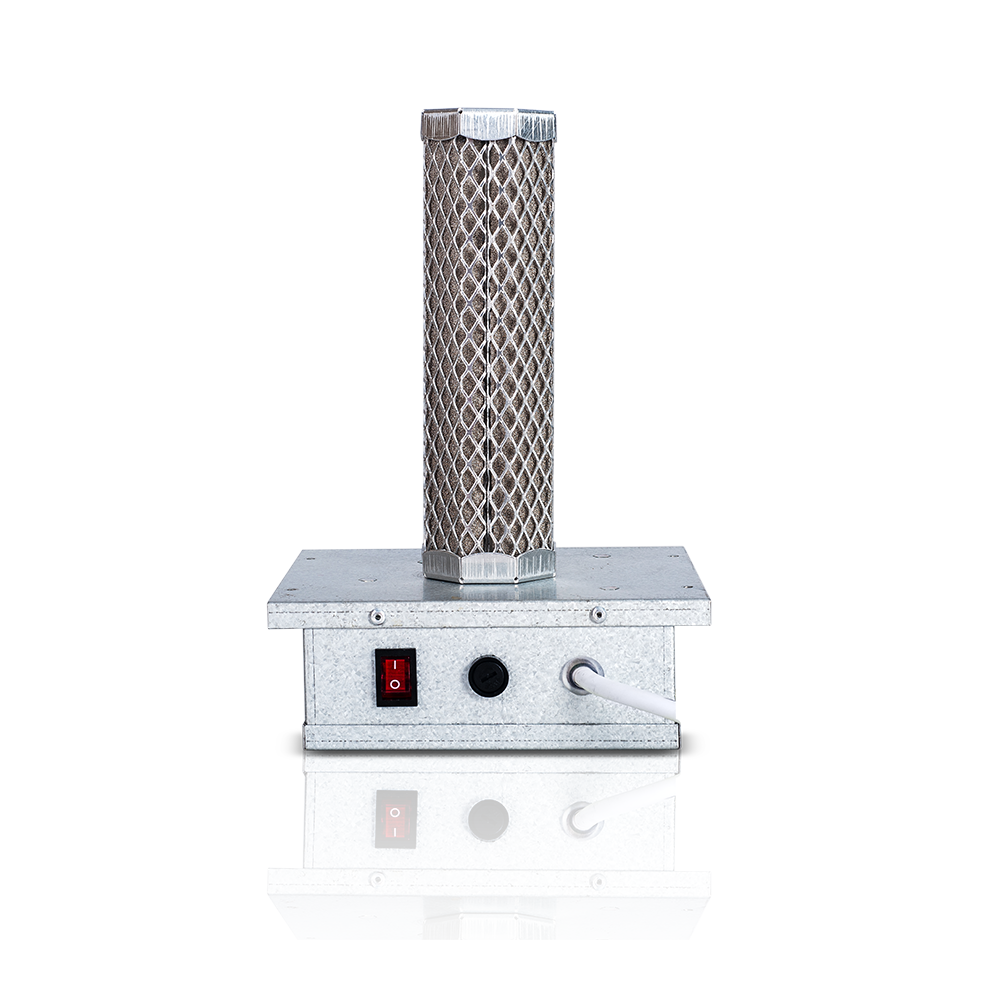

Product description:The product consists of a power distribution base and a low-pressure high-strength ozone-free UV lamp. It can be installed in any position in the fresh air and return air ducts to kill bacteria, viruses and spores carried by the air stream, eliminate odors, and keep the circulating air in the air conditioner clean and efficient. The operation can effectively prevent the bacterial growth and odor generation in the air supply system, and achieve the purpose of disinfecting the entire central air-conditioning system.

Structure: electric base and low voltage high duty non-ozone ultraviolet light

Function:

*Eliminate odor,

* Immediately kill bacteria,viruses and spores in the air,

*Remove formaldehyde and TVOC,

*Remove second-hand smoke smell,





Feature:

*complete physical disinfection, no second time contamination

*add Ni-Ti mesh

*easy installation and maintenance

*small occupation of land, large processed air volume

*low investment cost

*HS code 841920000
