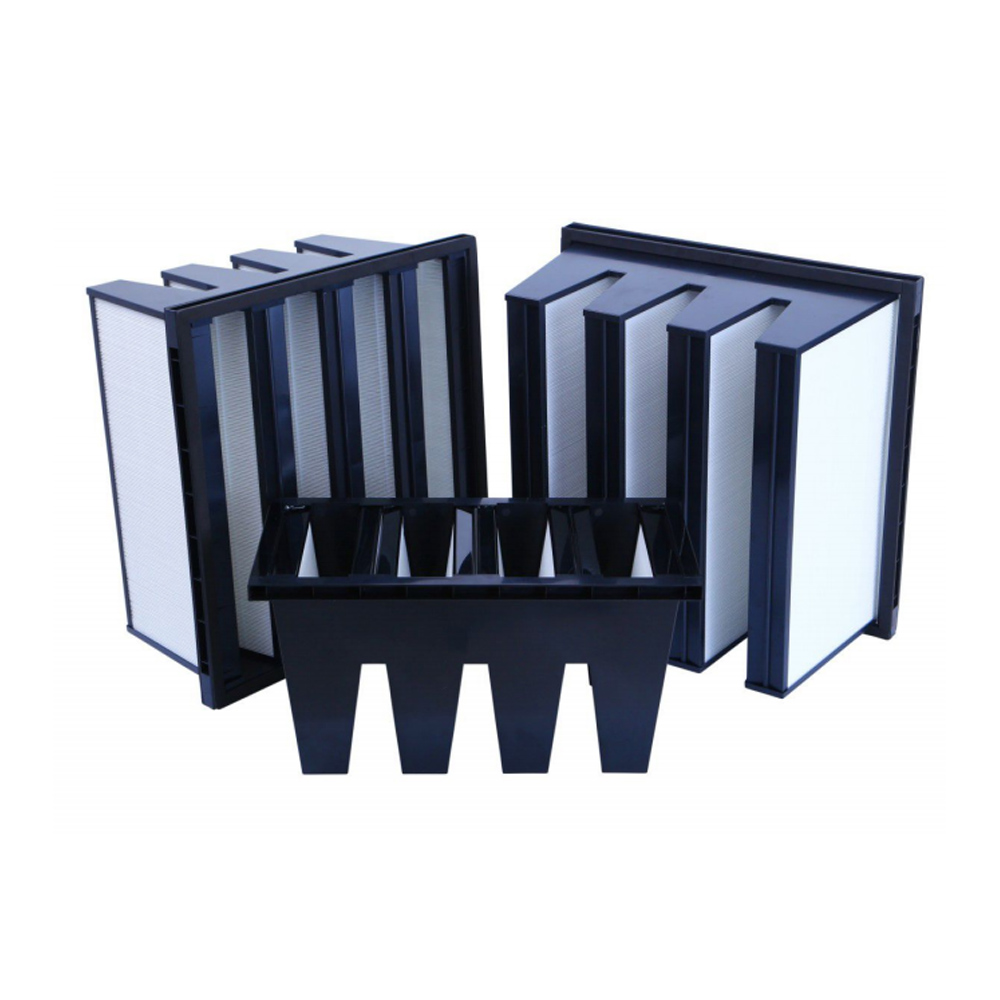

| product name | W-type sub high efficiency filter | |||||||
| product description | The combined HEPA filter is a large air volume combined filter,mostly is used in air conditioning system termimal,it is suitable for constant air flow and variable air flow system.The filter is divided into V-type and W-type ,its outer frame divided into: plastic frame, galvanized frame, aluminum frame, stainless steel frame,plastic frame is mostly used. | |||||||
| flange frame thickness | 22∽25mm | |||||||
| applicable field | It is suitable for use in research and production departments where various processes require less than 100,000 class cleanliness (<0.5um dust particles). Because the filter has good bacterial filtration performance, it is especially suitable for pharmaceutical industry, biological laboratory, hospital operating room, food industry, cosmetics industry, etc. | |||||||
| product feature | large filtering area,low resistance,long use life,depth of 292mm,suitable for narrow space of air conditioning or ventilation system,with mounting flange,replaceable with normal pocket filter. | |||||||
| technical data | ||||||||
| model | size | rated air volume | box QTY | initial presure | final presure | efficiency | material | |
| W*H*D | m3/h | Pa | Pa | % | 外框(outer frame） | 滤料（filter media) | ||
| LAD-DW-36 | 592*592*292 | 3600 | 4box/8pcs | ≤120 | 400 | H10∽H13 | polystyrene frame | high-quality fiberglass paper |
| LAD-DW-18 | 592*287*292 | 1800 | 4box/8cps,2box/4pcs | |||||
| LAD-DV-36 | 610*610*292 | 3600 | 5box/10pcs | galvanized frame | superfine polypropylene | |||
| LAD-DV-18 | 610*305*292 | 1800 | 5 box/10pcs,3 box/6pcs | aluminium frame | ||||
